Description

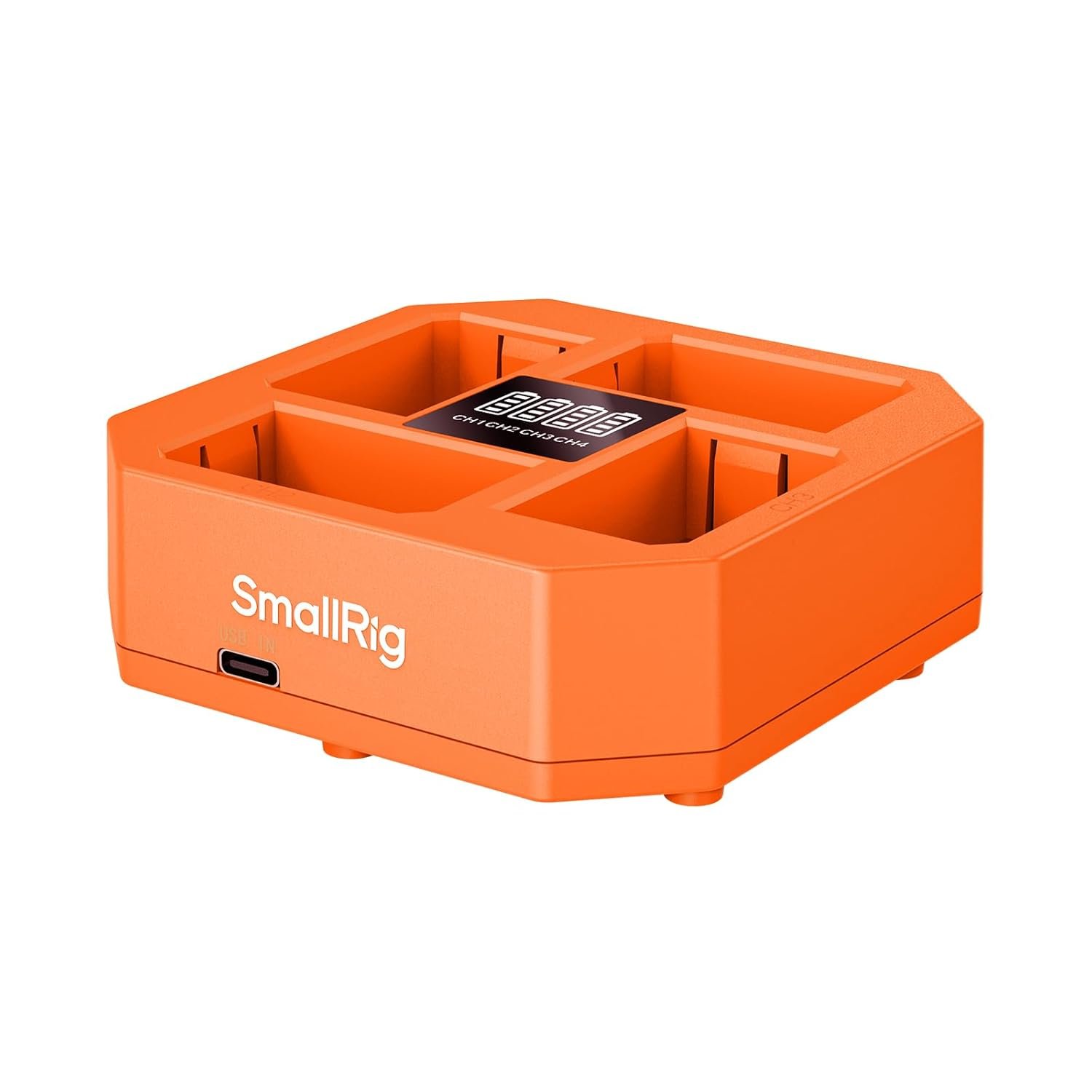

SmallRig NP-FZ100 4-Channel Camera Battery Charger 4839 is a high-efficiency, high-power charger for NP-FZ100 batteries, supporting a maximum input of 60W. This charger features four NP-FZ100 charging ports, allowing simultaneous charging of four batteries.
It offers comprehensive safety protection with short-circuit and overcurrent protection on each output port, ensuring safety during the charging process.

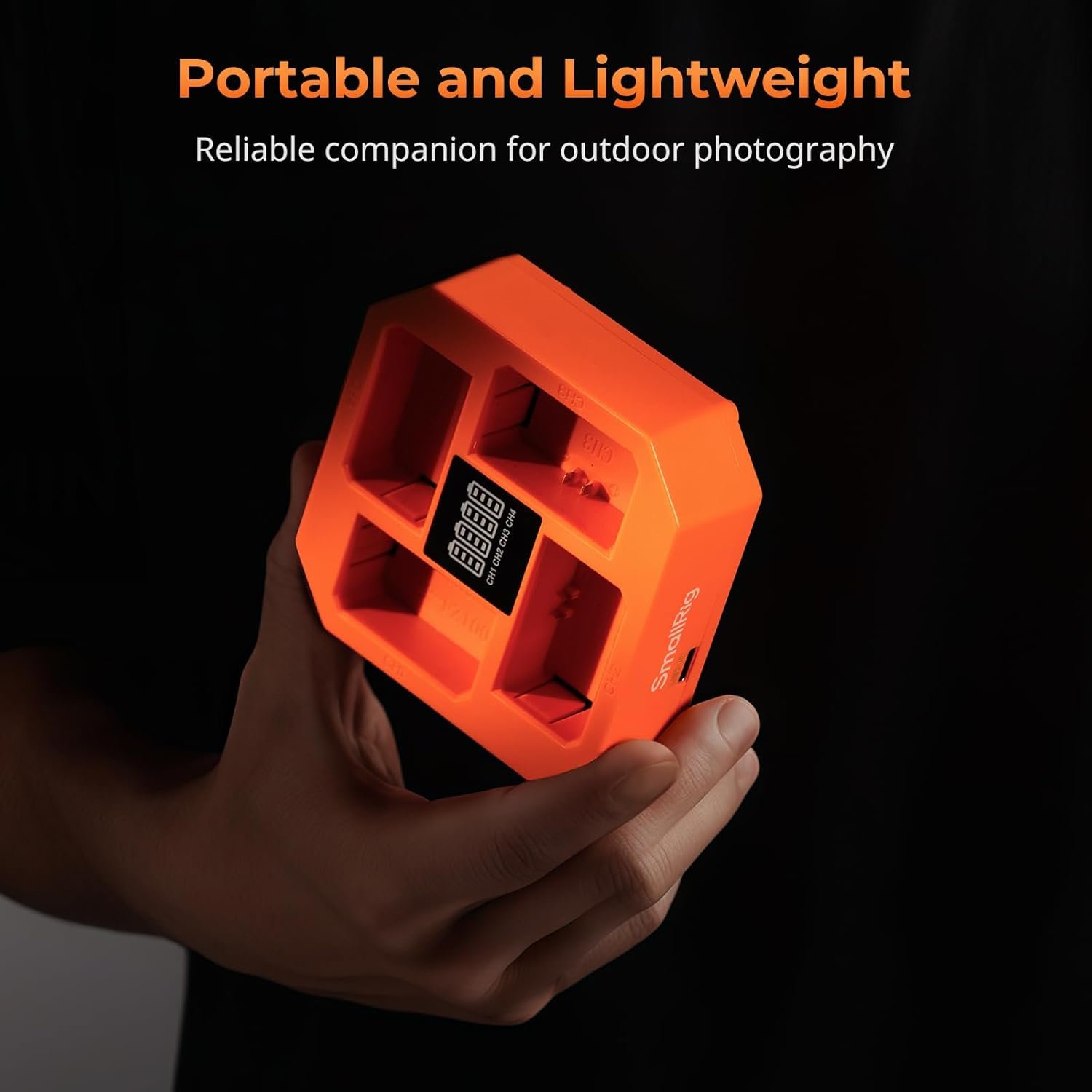

The compact and lightweight design makes it perfect for travel and daily use, serving as your on-the-go charging expert.

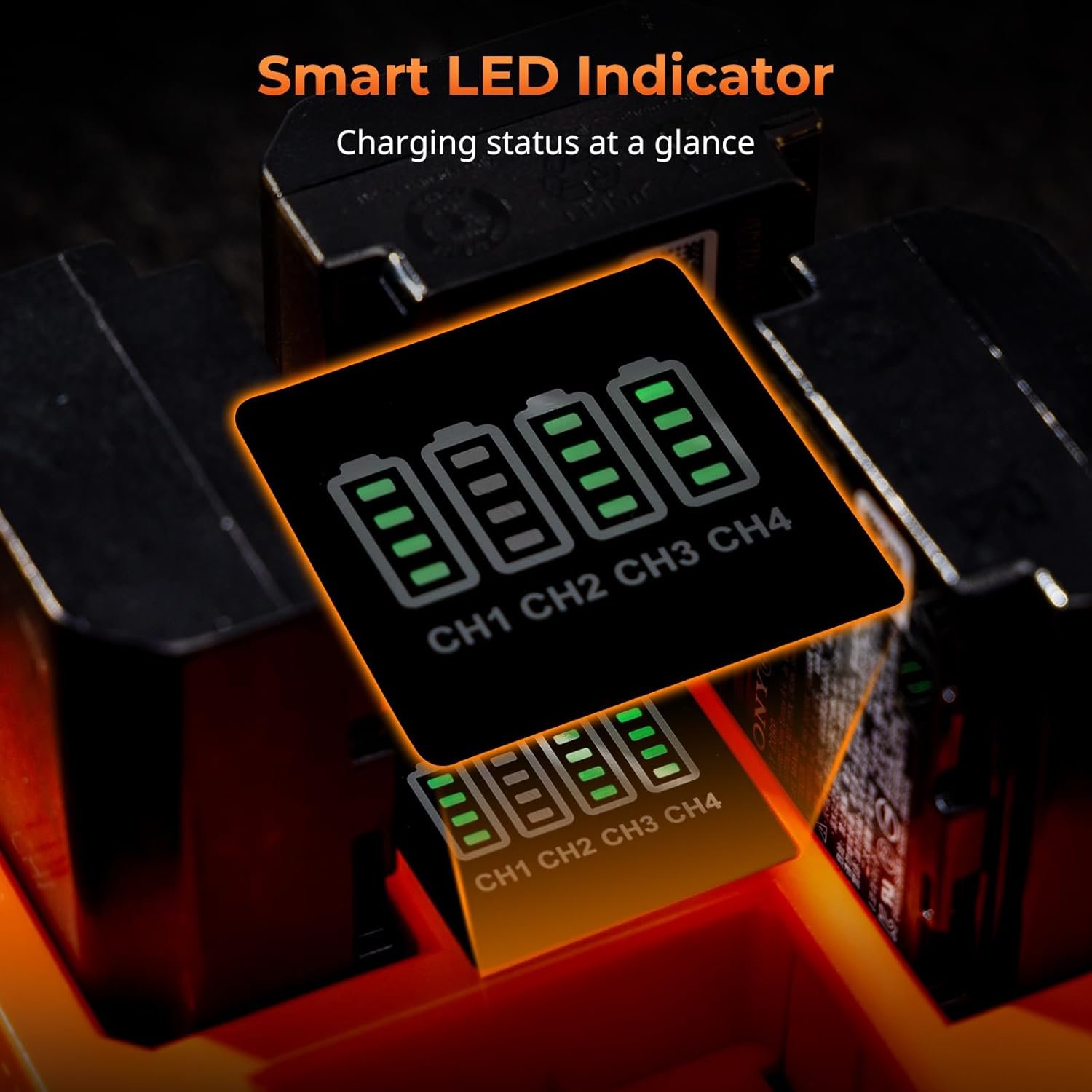

Equipped with an LED charging status display, the charger provides real-time updates on the charging status, allowing you to monitor the charging progress.
Time to full charge：
| Battery Capacity | 2040mAh（4074） | 2400mAh（4265B、4969 etc.） |
| Time to full charge | 4 units fully charged in 2 hours | 4 units fully charged in 2 hours and 50 minutes |
Compatibility
Panel light, image transmitter, monitor, camera, camcorder
Note:
1.Suggestion: Use a USB-C adapter with an output of 80W or above for the charger.
2.When using a USB-A adapter for the charger, ensure it supports the QC 12V protocol. Without this support, charging is not possible and the charger’s screen will display a constant power level.
Certification
FCC / CE / PSE / RCM
Package
NP-FZ100 4-Channel Camera Battery Charger x 1
60W C to C Charging Cable x 1
User Manual x 1
Specifications
| Item | Specifications |
| Material(s) | ABS + PC |
| USB-C Input | 12V⎓3A, 15V⎓3A, 20V⎓3A |
| Output (Per Channel) | 8.4V⎓1A (Max) |
| USB-C Protocol | PD |
| Charging Voltage Limit | 8.45V |
| Charging Environment Temperature | 5℃ to 45℃ / 41°F to 113°F |
| Product Dimensions | 90.0 x 90.0 x 27.0mm / 3.5 x 3.5 x 1.1in |
| Product Weight | 118.0 ± 5.0g / 4.2 ± 0.2oz |
Button / Indicator Function Display
| Item | Instructions |
| Status Indicator | Indicates respective channel battery level; Flashing indicates charging; All four lights on indicate full charge. |
Product Specifications
- Product Dimensions: 90.0 x 90.0 x 27.0mm / 3.5 x 3.5 1.1in
- Package Dimensions: 129 x 99 x 38 mm / 5.07 x 3.9 x 1.5 in
- Product Weight: 145.7oz ± 5.0g / 4.2oz ± 0.2oz
- Package Weight: 202.5g ± 5.0g / 7.98oz ± 0.2oz
